Galvanized Flood Control or Military Fortification Defensive Barrier
security barrier as the name showed, it's one barrier for security use. It's strong welded gabion mesh barrier, mostly filled with stone, sand, soil or any others material. With wire diameter 4-5mm, mesh hole 3"x3", join pin and spring wire 3mm or 4mm.
Speciation details of defense bastion:
Wire Thickness:
QS 1,2,3,4,,5,8,9.........8 Gauge(4mm)Galvanized steel wire
QS 7,10......................6 Gauge(5mm)Galvanized steel wire
Mesh Size:3" x 3"( 75mm x 75mm)
Sprial Wire: 8 Gauge(4mm)Hard steel wire, it also called as Coil Hinges, Helical wire.
Joining Pins: 8 Gauge(4mm)galvanized hard steel wire, 10 Gauge(3mm) galvanized hard steel wire.
Geotextile: 3mm heavy-duty non-woven polypropylene cloth.
Geotextile weight:300g/m2
Geotextile colour: Beige, Green
Geotextile surface treatment: Hot dipped galvanized, Al+Zn Alloy Wire.(=Galfan Wire)
Features of Galvanized Flood Control or Military Fortification Defensive Barrier :
It is also named as bastion, defense wall,Sand Cage, Welded Gabion box, etc.which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety. It is a prefabricated, multi-cellular system,
made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.
More details of Galvanized Flood Control or Military Fortification Defensive Barrier :
1.Wire diameter: 3-6mm
2. Mesh size: 76x76mm, 50x50mm
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;Color:Grey and Military Green,Sand color etc.
5. Finish: hot dipped galvanized, Galfan wire.
6. Packing: wrapped with shrink film or packed in pallet
| Product Item standards | Height | Width | Length | Cells |
| QG MIL1 | 54''(1.37m) | 42''(1.06m) | 32'9''(10m) | 1*4+1*5 cells |
| QG MIL2 | 24''(0.61m) | 24''(0.61m) | 4'(1.22m) | 2 cells |
| QG MIL3 | 39''(1.00m) | 39''(1.00m) | 32'9''(10m) | 2*5 cells |
| QG MIL4 | 39''(1.00m) | 60''(1.52m) | 32'9''(10m) | 2*5 cells |
| QG MIL5 | 24''(0.61m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
| QG MIL6 | 66''(1.68m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
| QG MIL7 | 87''(2.21m) | 84''(2.13m) | 91'(27.74m) | 2*4+1*5 cells |
| QG MIL8 | 54''(1.37m) | 48''(1.22m) | 32'9''(9.14m) | 1*4+1*5 cells |
| QG MIL9 | 39'(1.00m) | 30''(0.76m) | 30'(9.14m) | 2*6 cells |
| QG MIL10 | 87''(2.21m) | 60''(1.52m) | 100'(30.5m) | 4*5 cells |
| QG MIL11 | 48''(1.22m) | 12''(0.3m) | 4'(1.22m) | 4 cells |
| QG MIL12 | 84''(2.13m) | 42''(1.06m) | 108'(33m) | 6*5 cells |
| QG MIL19 | 108''(2.74m) | 42''(1.06m) | 10'5''(3.18m) | 3 cells |
Application:
∗Perimeter Security and Defence Walls,
∗Equipment Revetments,
∗ garden landscaping decorative
∗Personnel and Material Bunkers, Observation Points, Defensive Firing Positions
∗Guard Posts, Explosives and Contraband Search Areas, Highway Checkpoints,
∗Border Crossing Checkpoints, Protecting Existing Structures, Flood control retaining wall
∗Coastal Erosion, Protection engineering of seaside area.
Product Tags:
|
|

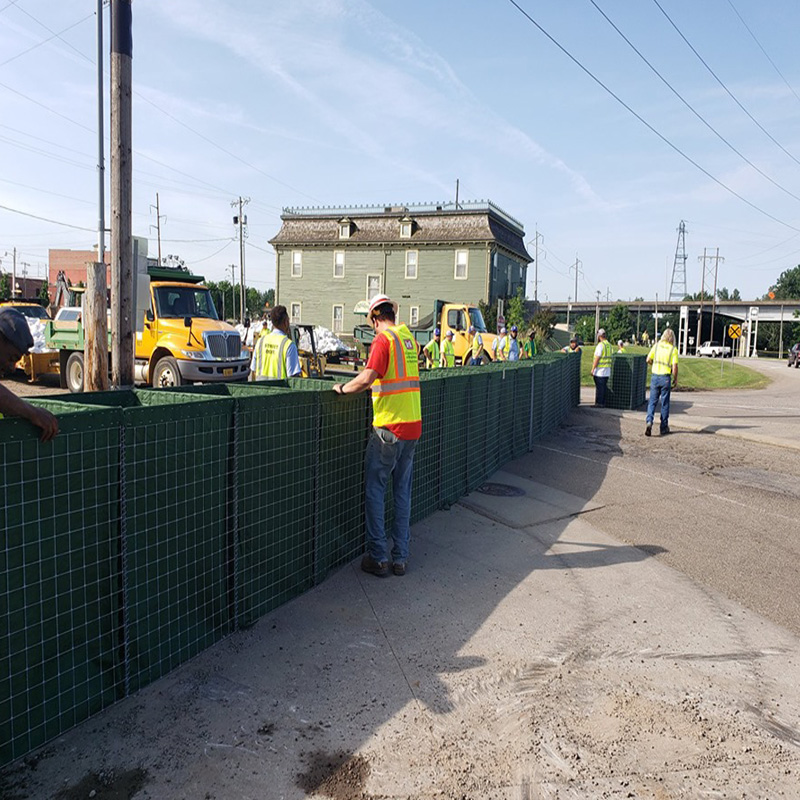

Galvanized Flood Control Or Military Fortification Gabion Barrier Images
|
